Overview
A control panel is the one piece of automation hardware a client touches every day, so it carries the whole system's credibility. Ours are specified to sit flush in marble, timber, or plaster, with edge tolerances tight enough that the panel reads as part of the wall rather than an addition to it.
Every panel runs the same scene engine as the mobile app and the gateway, so a scene created on the wall is instantly available on a phone, a keypad, or a voice assistant. There is no second system to configure and no drift between interfaces.
The range
Series
One electrical platform across the range, so mixing series on a project changes the look without changing the commissioning.
Harmony X10
10-inch flagship panel for entrance halls and primary suites.
- 10.1" bonded IPS display, 1280×800
- Full-house floor plan with room-by-room control
- Built-in intercom answering and camera preview
- PoE or 24V DC, single back box

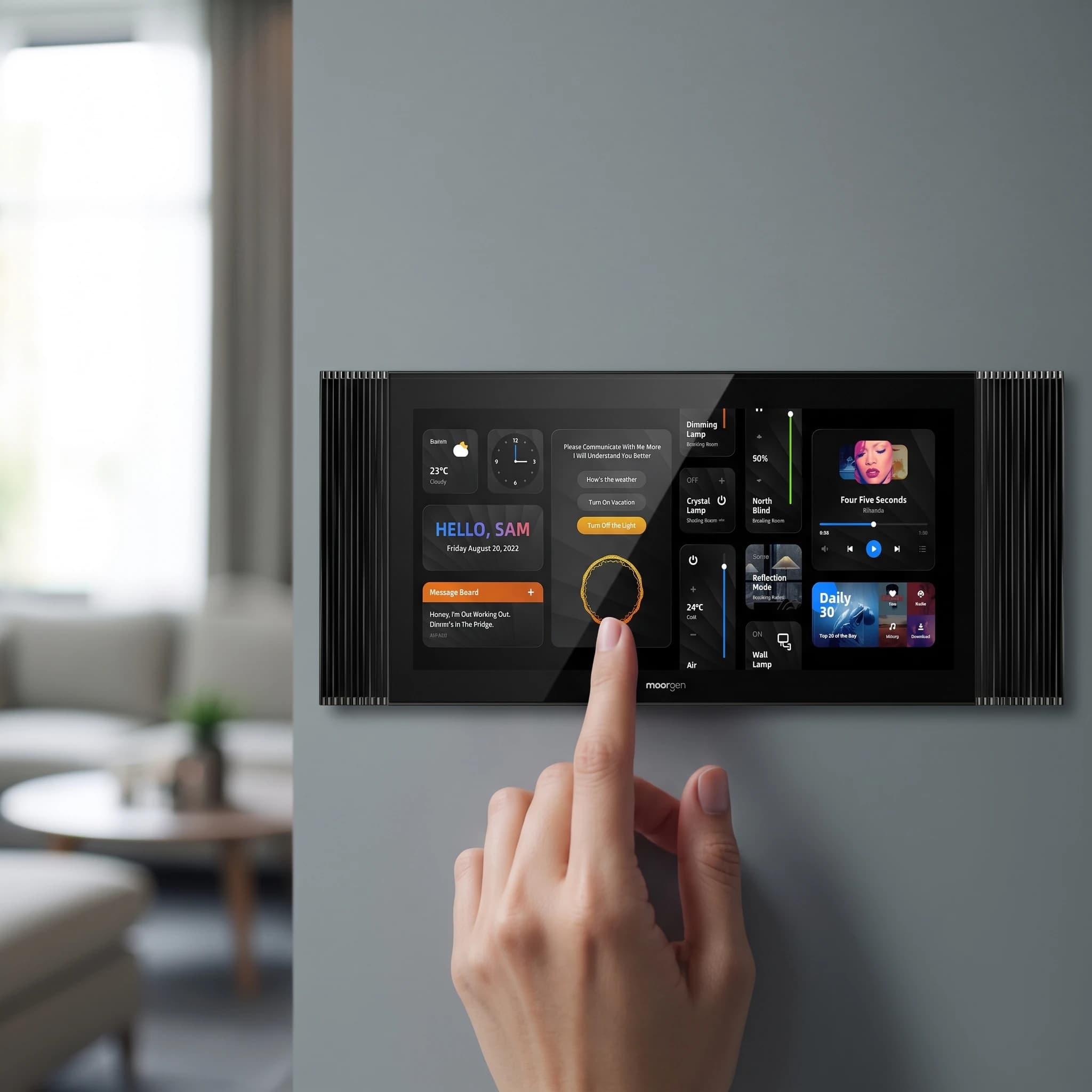

Harmony M20
Mid-format panel for living rooms, kitchens, and corridors.
- 6.8" display with proximity wake
- Eight configurable scene tiles
- Local processing, continues to work if the network drops
- Matches the switch range's finishes
H-PAD
Portable panel for clients who prefer to carry the interface.
- 8" tablet with magnetic dock and wireless charging
- Roams across the whole Wi-Fi mesh
- Guest mode with restricted scope
- 14-hour battery under normal use
Engineering
What actually makes the difference.
Scenes, not switches
Clients rarely want to adjust one light. Panels lead with scenes (Morning, Dining, Away, Cinema) and keep granular control one tap deeper.
Local-first control
Scene logic runs on the gateway inside the property. A dropped internet connection affects remote access only; the house keeps working.
Finish-matched
Panels ship in the same brushed, matte, and glass finishes as the switch range, so a wall carrying both reads as one specification.
Commissioned, not configured
Every panel is programmed on site against the lighting schedule, then handed over with a walkthrough and a printed scene reference.
Reference
Specification
- Display sizes
- 6.8", 8", 10.1"
- Power
- PoE 802.3af or 24V DC
- Back box
- Standard UK single/double, EU 60mm
- Protocols
- KNX, Zigbee 3.0, Matter, Wi-Fi 6
- Finishes
- Brushed brass, matte black, glass white, champagne
- Warranty
- 3 years parts and labour
